Description

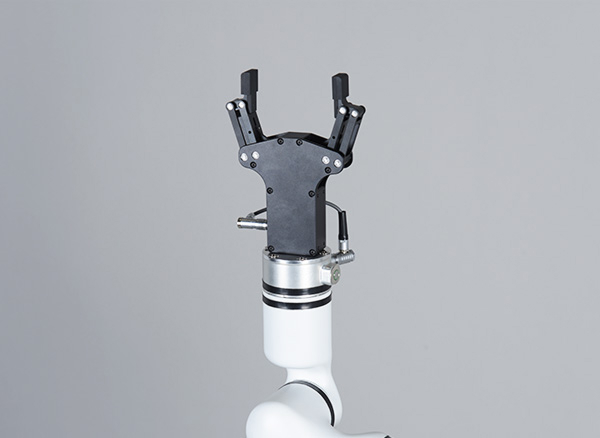

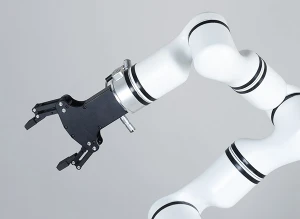

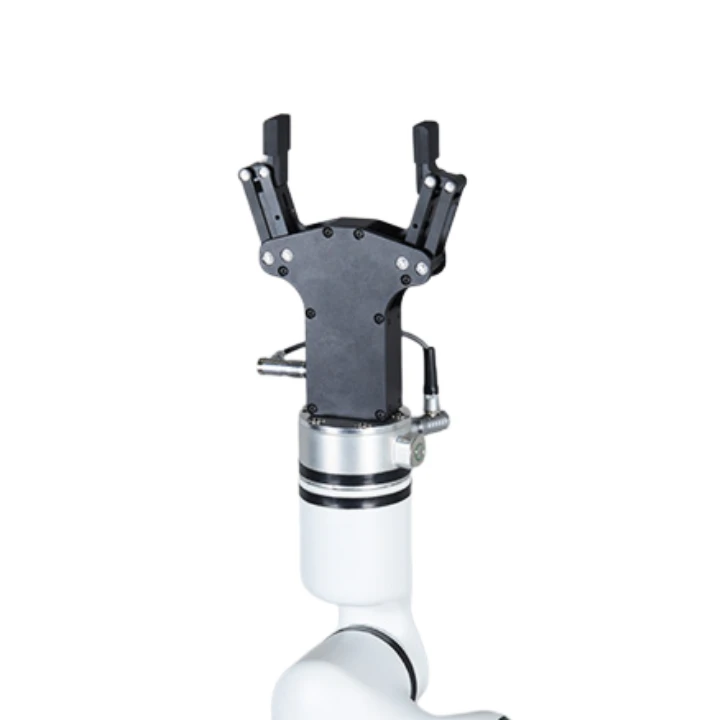

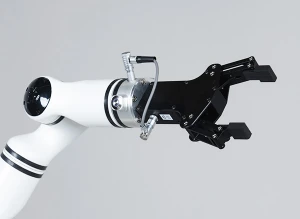

This gripper adopts an innovative linear drive linkage design, with force-position control, large opening, light weight, power-off self-locking and support for ROS. As the end effector of a cooperative robotic arm, it is mainly used in fields such as loading and unloading, sorting, unmanned retail, teaching and research.
Clamping force
0-20N
Clamping force adjustment accuracy
±1N
Repeatability
±0.5mm
Total travel
0-70mm
Full closing time
1.3s
Weight
231g
Communication interface
RS485
Working voltage
24V DC±10％
Peak current
0.7A
Protection level
IP40
