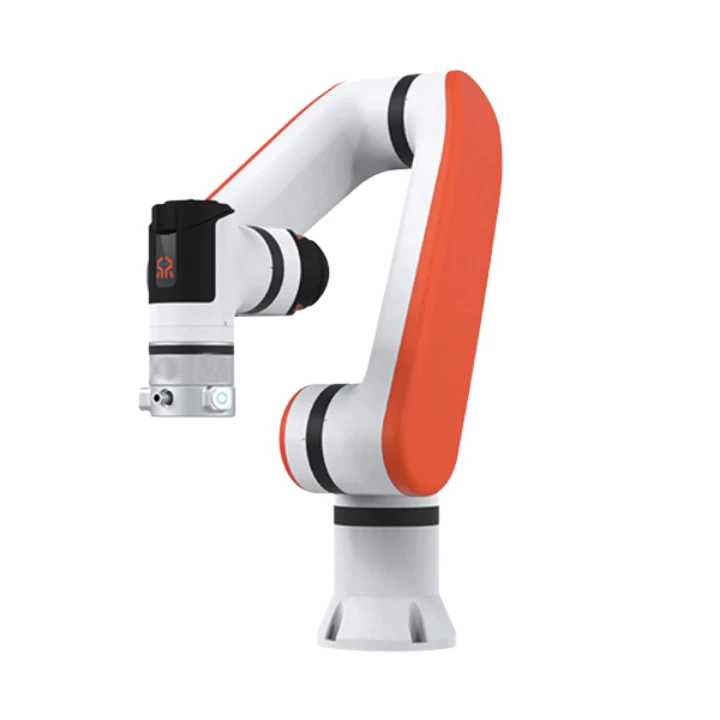

ECO62-B Robotic Arm – Compact, High-Precision 6-DOF Manipulator
The ECO62-B robotic arm is a compact yet powerful 6-degree-of-freedom (6-DOF) manipulator, built for collaborative, safe, and efficient automation. Combining strength, precision, and portability, it is ideal for industrial production, medical research, educational labs, and commercial services.
Lightweight and Reliable Performance
Weighing only 3.3 kg, the ECO62-B supports a payload of up to 2 kg with a working radius of 355 mm and an overall height of 505 mm. Its repeatability of ±0.05 mm ensures precise, consistent results in delicate handling, assembly, and research applications.
Efficient Power and Control
The arm runs on a DC 20–30V system with a low power consumption of 200 W, making it energy efficient. An integrated controller simplifies setup and operation, while connectivity options include Wi-Fi, Bluetooth, RS485, USB, and network interfaces. Users can program and control with ease using drag-and-drop teaching, pendant control, API, and JSON-based integration.
Durable and Safe Design
Built with an IP54-rated aluminum alloy + ABS body, the ECO62-B is protected against dust and light splashes. Safety features include hard brake locks on J1–J3 and soft brakes on J4–J6, ensuring reliable long-term operation. With a certified service life of 30,000+ hours, it provides lasting value.
Compact Robotic Solution
The ECO62-B robotic arm delivers an affordable, precise, and flexible automation solution for labs, classrooms, and industrial automation lines, helping organizations expand their automation capabilities with confidence.
